Benefits

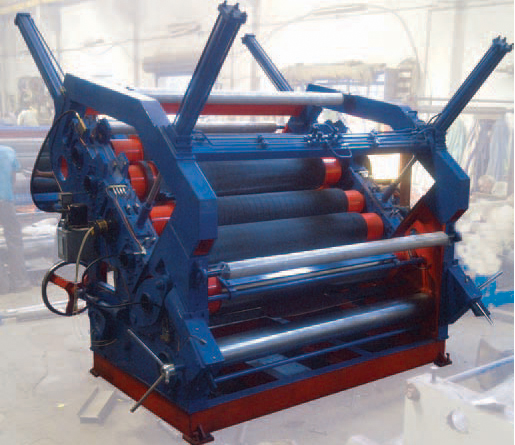

- Twin facer structure: one flute unit working and another at preheating, makes flutes change and roll maintenance easy.
- The glue application unit is designed to simplify maintenance, cleaning and assembling.
- Auto-circulating glue feeding system is provided. Amount of gum applied is adjusted electrically.
- The flute formation is operated mechanically.
- The individual driving box, which is separated from dynamic oscillation, improves running stability.
- The corrugating roll is made of special alloy steel with hardness reaching to HRC55-58.
Technical Data
Model |
Specification |
Models Available |
SDR - 100 / 150 / 250 / 300 |
Machine Sizes |
42" To 100" |
Options |
With Finger(Adaptors) Or Fingerless (Without Adaptors) |
Grammages |
Min. 90G/M2 |
Supply Voltage |
440V 3 Phase. |
Heating Mode |
Electrical Heater Thermic Fluid Heater Steam Heating |
Electrical Heaters |
Up To 62" Machine Size |
Steam Pressure |
Up to 16 Bar |
