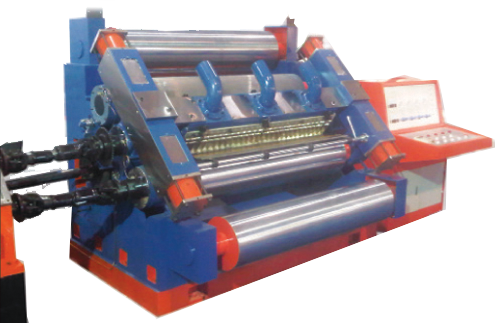

High Speed Fingerless Single Facer ( Pneumatic) - SHSB 320

Benefits

  • Drive reducer box with oil immersed type gearbox to reduce noise and keep the running stable.
  • Corrugating roller pressure roller and glue roller adjustment by mechanical or pneumatic.
  • Bearings of corrugated and pressure rollers adopt to high temperature and lubrication needs.
  • The upper-lower corrugating rollers are made of high quality alloy steel.
  • The surface of glue part is treated by special mesh and is hard chrome plated.
  • Motorised or manual glue widths are divided to match the paper width.
  • Glue part can be running independently or non independently while stopped. (Optional)


Technical Data

  Model   Specification
  Models Available   SHSB -250 / SHSB -320
  Machine Sizes   24" to 100"
  Grammages   Min. 90g/m2
  Heating Mode   Electrical Heaters
  The Termic Fluid Heate
  Steam Heating
  Electrical Heaters   Up to 62 machine width
  Steam Pressure   Up to 16 Bar
